Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels

Basic Information
Place of Origin: China
Brand Name: TONGYU
Model Number: 12V2(D2)
Minimum Order Quantity: 5pcs
Price: Usd30-50 per piece
Packaging Details: box
Delivery Time: 5-20 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 2000pcs per month
Detail Information
Name: Resin Bonded Diamond Grinding Wheel Dish Wheels Type: Dish Wheel, Diamond Wheel, Grinding Wheel
Main Content: Super Diamond Grits Bonded Type: Resin Bonded
Out Diameter: 50-150mm Inner Diameter: 10-32mm
Thickness: 10-16mm Abrasive Area Width: 2-3mm
High Light:

16mm Diamond Superabrasive CBN Wheel 6 Inch

,

16mm Superabrasive CBN Wheel 6 Inch

,

16mm Superabrasive Grinding Wheels


Product Description

Resin Bonded Diamond Grinding Wheels,

Dish wheel type 12v2(D2)







1. Sketch  map of our diamond abrasive wheel



    D: out diameter

    H: inner diameter

    T:  thicknesss

    X:  abrasive area width

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels 0





2. Detail size matching of our normal grinding wheels.



    We accept customed special sizes from client, prefer quantity not less than 10pieces.





Dimensions(mm)
D T H X U
50 10 10 2 2
75 13 10,20 3 3
100 13 20 3 3
125 16 32 5 3
150 16 32 5 3

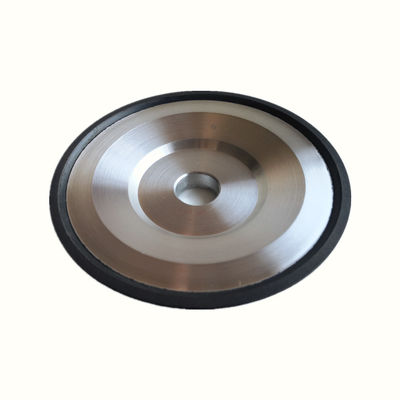

3. More of our diamond wheel picture

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels 1

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels 2

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels 3







4. Character of our grinding wheels

  • High wear resistance
  • Long processing life
  • Sharp with high abbrasive efficiency
  • Wide range of processing applications.



Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.



We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:



1. Yr processing objects.

2. Yr OD, ID, Thickness , Diamond concentration data etc.

3. Grit size if possible.

4. Rotary speed of your processing machine.



Many Thanks.
