| Place of Origin: | China |
|---|---|
| Brand Name: | TONGYU |
| Model Number: | 6A2(B.PDA) |
| Minimum Order Quantity: | 5pcs |
| Price: | Usd30-50 per piece |
| Packaging Details: | box |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 2000pcs per month |
| Name: | Resin Bonded Diamond Grinding Wheel Flaring Cup Wheels | Type: | Cup Wheel, Flaring-cup Wheel, Diamond Wheel |
|---|---|---|---|
| Main Content: | Super Diamond Grits | Bonded Type: | Resin Bonded |
| Out Diameter: | 50-200mm | Inner Diameter: | 10-32mm |
| Thickness: | 10-56mm | Abrasive Area Width: | 5-20mm |
| High Light: | 200mm Resin Bonded Diamond Wheel,cup Resin Bonded Diamond Wheel,56mm Cbn Sharpening Wheel |
||

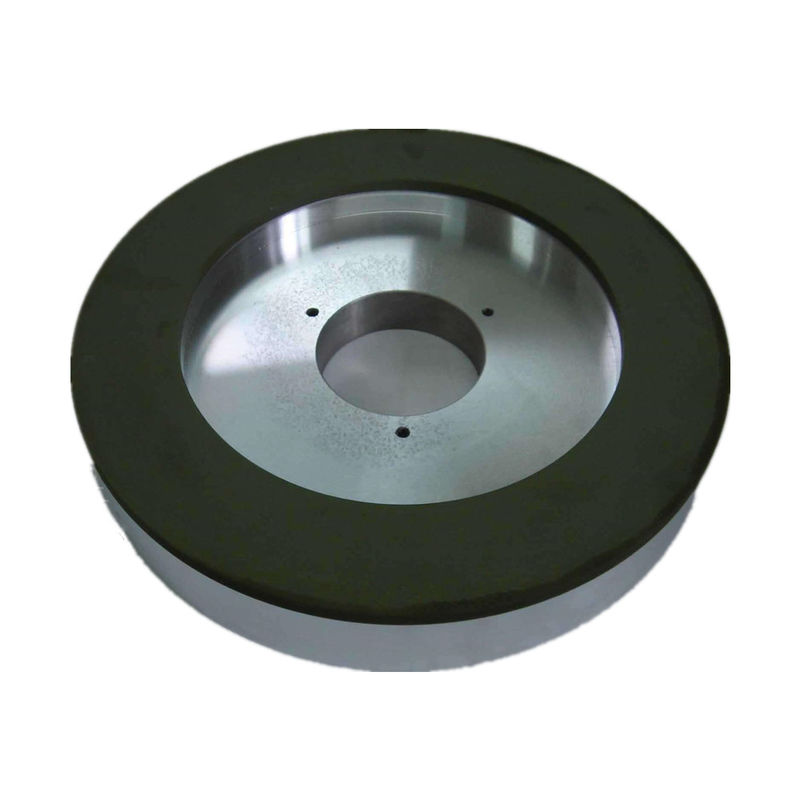

Resin Bonded Diamond Grinding Wheels, Cup Wheels, Diamond Wheels
Flaring-cup Wheel type: 6A2(B.PDA)
1. Sketch map of our diamond abrasive wheel
D: out diameter
H: inner diameter
T: thicknesss
X: abrasive area width
2. Detail size matching of our normal grinding wheels.
We accept customed special sizes from client, prefer quantity not less than 10pieces.
| Dimensions(mm) | ||||
| D | T1 | H | X | W |
| 50 | 10,20 | 10 | 2,3,4,6 | 5 |
| 75 | 10,22 | 10,20 | 2,3,4,6 | 3,6,10 |
| 100 | 15,29 | 20 | 2,3,4,6 | 5,10 |
| 125 | 15,23,29 | 32 | 2,3,4,6 | 5,6,10,15,20 |
| 150 | 15,23,29 | 32 | 2,3,4,6 | 5,6,10,15,20 |
| 175 | 15,25 | 32 | 2,3,4,6 | 6,10,15,20 |
| 200 | 15,25,56 | 32 | 2,3,4,6 | 10,15,20 |
3. More of our diamond wheel picture
4. Character of our grinding wheels
Over 15 years of developing and producing experience in high precision super hard material tools, we have
established a high efficiency system to provide stable performance wheel products.
We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel
type and quotatioon to you, if possible, better for you to provide us more information like followings:
1. Yr processing objects.
2. Yr OD, ID, Thickness data.
3. Grit size if possible.
4. Rotary speed of your processing machine.
Many Thanks.
