| Place of Origin: | China |
|---|---|
| Brand Name: | TONGYU |
| Model Number: | TYDD-11V9(BW2) |
| Minimum Order Quantity: | 5pcs |
| Price: | Usd20-50 per piece |
| Packaging Details: | box |
| Delivery Time: | 5-20 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 2000pcs per month |
| Name: | Electroplated Diamond Grinding Wheel Flaring Cup Wheels | Type: | Cup Wheel, Flaring-cup Wheel, Diamond Wheel |
|---|---|---|---|
| Main Content: | Super Diamond Grits | Bonded Type: | Electroplated With Nickle |
| Out Diameter: | 75-150mm | Inner Diameter: | 20-32mm |
| Thickness: | 30-50mm | Abrasive Area Width: | 3-5mm |
| High Light: | 150mm Diamond Cup Grinding Wheels,nickle Diamond Cup Grinding Wheels,30mm Straight Cup Grinding Wheel |
||

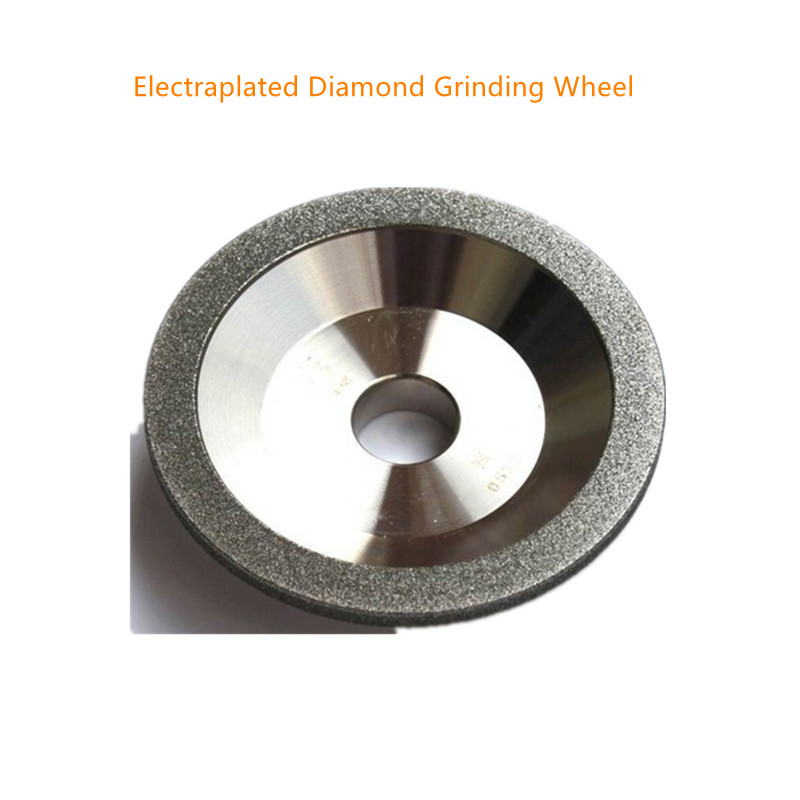

Electroplated Diamond Grinding Wheels, Cup Wheels, Diamond Wheels
Electroplated Flaring-cup Wheel type: BW2
Product introduction:
Product Name: grinder wheel
Material: high quality diamond
Grinding wheel substrate material: 45# steel
Commonly used particle size: 100 #, 150 #, 180 #, 200 #, 240 #, 320 #, 400 #, 600 ##
Sample product specification: 100x10x5x20x32 (outer diameter x sand width x sand thickness x inner hole x height)
Factory direct sales, support special customerized specification.
Application fields:
The diamond grinding wheel has stable performance in grinding precision, grindability and service life. It can be used for processing many different materials, not only in grinding tools, but also in various wear-resistant tools.
1. Sketch map of our diamond abrasive wheel
D: out diameter
H: inner diameter
T: thicknesss
X: abrasive area width
2. Detail size matching of our normal grinding wheels.
We accept customed special sizes from client, prefer quantity not less than 10pieces.
| Dimensions(mm) | ||||
| D | T | H | X | U |
| 75 | 30 | 20 | 3;5 | 6,10 |
| 80 | 32 | 20 | 3.5 | 5 |
| 90 | 35 | 20 | 3;5 | 6,10 |
| 100 | 35,40 | 20,32 | 3;3.5;5 | 6,7,10 |
| 125 | 40 | 20,32 | 3;5 | 6,10 |
| 150 | 50 | 32 | 3;5 | 6,10 |
3. More Pictures of our diamond wheel
4. Character of our grinding wheels
5. Our Operating Procedure
Over 15 years of developing and producing experience in high precision super hard material tools, we have
established a high efficiency system to provide stable performance wheel products.
We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel
type and quotatioon to you, if possible, better for you to provide us more information like followings:
1. Yr processing objects.
2. Yr OD, ID, Thickness data.
3. Grit size if possible.
4. Rotary speed of your processing machine.
Many Thanks.
