| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TY |
| Model Number: | TY-DRSS-004 |
| Minimum Order Quantity: | 5pcs |
| Price: | Usd10-20 Per Piece Fob |
| Packaging Details: | Plastic Inner box + Carton box outer side |
| Delivery Time: | 7-20days |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 10,00pcs per Month |
| Name: | Dressing Rollers , Dressing Wheels | Grinding Material: | Diamond Particles |
|---|---|---|---|
| Type: | Diamond With Alloy Steel | Out Diameter: | 10-120mm |
| Inner Diameter: | 8-100mm | Thickness: | 10-25mm |
| Grit Size: | 40-1000 | Processing Object: | Dressing Of Grinding Wheels |
| Bonded Type: | Metal Sintered Or Electroplated | ||
| High Light: | 25mm Abrasive Dressing Tools,100mm Abrasive Dressing Tools,Electroplated Diamond Roller Dresser |
||
Supply Electroplated Diamond Roller Dressers And Sintered Roller Dressers
For Forming and dressing of grinding wheel for CNC face cylindrical grinder
Model Type: TY-DRSS-004
Diamond roller application industry:
1. Gear industry: gear type diamond dressing roller, one-time dressing of grinding wheel and honing wheel, its dimensional accuracy and form and position accuracy have reached the conditions, and the distribution of abrasive particles is relatively uniform, the coating and substrate, coating and abrasive particles are bonded firmly, and the most important thing is that we use an advanced manufacturing method, that is, internal plating method, which is very important The manufacturing process is simple, and the precision and durability are relatively high.
2. Auto parts
3. Cage industry
4. Repairing CBN grinding wheel
5. Blade dressing
6. Nozzle oil pump industry
7. Bearing industry: high precision diamond wheel dresser is a high precision, high efficiency, long service life and low cost forming wheel dressing tool used for mass forming grinding in machining. It is characterized by the need for multiple grinding process into a processing, improve the processing workpiece linearity, can greatly improve product quality and improve production efficiency. Electroplating roller is based on the principle of electroplating. First, nickel is plated on the substrate, and then abrasives (diamond or CBN) are adsorbed on the substrate surface under the action of current. The roller is generally composed of matrix, abrasive layer (also called gold layer) and transition layer (also called non layer). The matrix is the carrier of the abrasive, the abrasive layer acts directly on the workpiece, plays the role of grinding, is the most important part of the roller; the transition layer is the bridge between the matrix and the abrasive, it mainly ensures the adhesive strength of the abrasive, the non layer is several kinds of metal powder, through pressure heating, the matrix and abrasive are fused together.
Application advantages of diamond roller:
1. Simple operation: stable quality, high dressing efficiency, long service life, easy to realize automation;
2. Complex surface dressing: it can finish complex surface dressing with stable surface quality and precision;
3. Strong stability: greatly reduce the finishing time, and the surface accuracy is within 0.005mm;
4. Customized service: provide customized service according to processing conditions, industry application and drawing size.

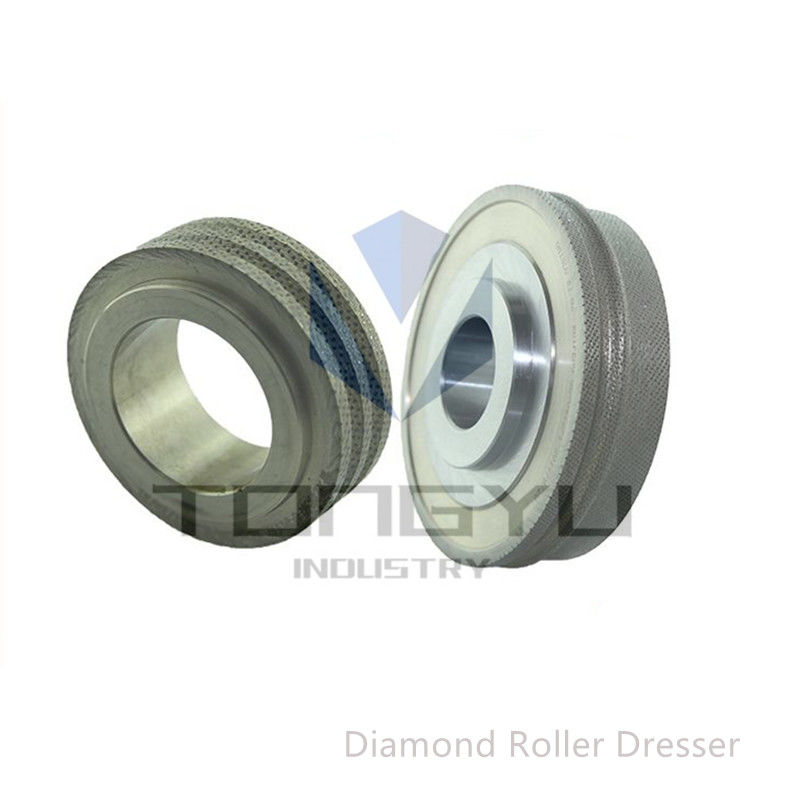

More Pictures of Diamond Dressing Roller:
