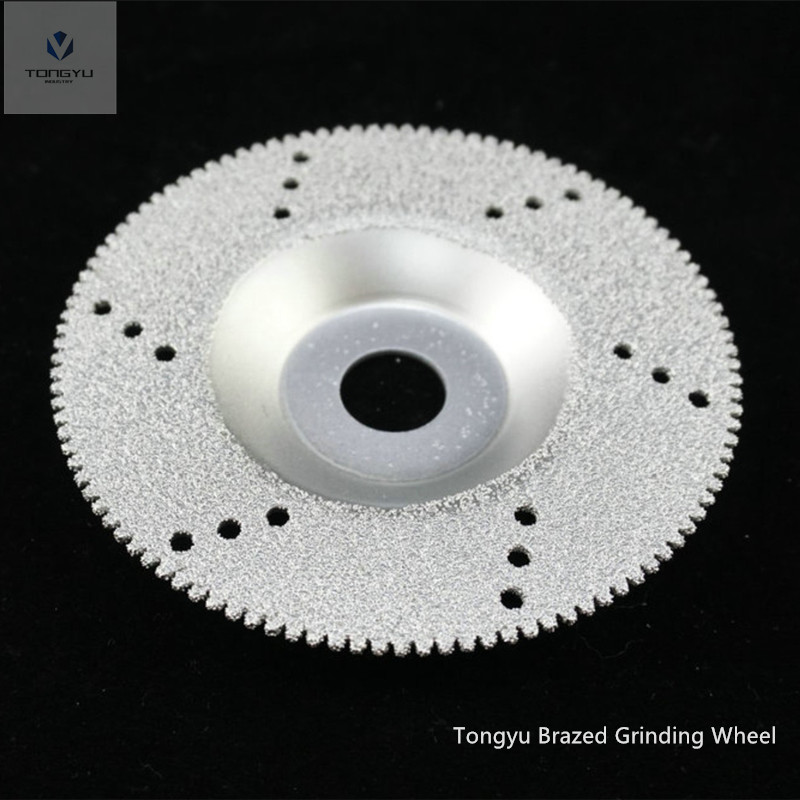

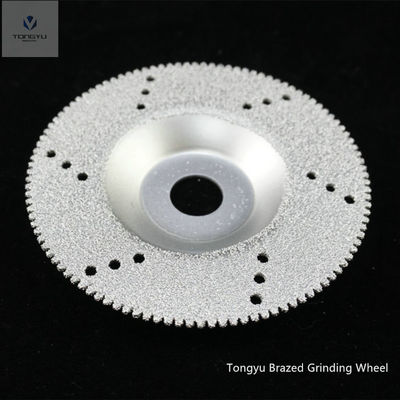

100mm Brazed Diamond Tools For Marble Stone Ceramic Quartz Cutting

High Performance Brazed Diamond Saw Blade , Brazed Grinding Wheel

For Marble Cutting , Stone , Ceramic And Quartz Cutting Etc.

Specification:

• 100*16*1.6 mm

• 100*20*1.6 mm

• 110*20*1.6 mm

• 110*20*1.6mm

• Cuztomized Specification

Types :

• Round edge brazed cutting blade

• Grooved edge brazed saw blade

• Serrated edge brazed saw blade

1. Sketch  map of our brazed cutting blade.

    D: out diameter

    H: inner diameter

    T:  thicknesss

    X:  abrasive area width

2. Detail size matching of our diamond cutting blade

    We accept customed special sizes from client, prefer quantity not less than 10pieces.

3. More pictures of our diamond blade

4. Details and Character of our grinding wheels

Name: brazed diamond saw blade

Specifications: various

Abrasive: Diamond / CBN

Processing object: the products mainly process all kinds of cast iron, nodular iron parts, such as flash surface angle polishing, high efficiency, long service life, is an ideal grinding tool to replace ordinary abrasive resin or ceramic grinding wheel. In use, the diameter of the grinding wheel becomes smaller, the dust pollution is greatly reduced, the safety is high, and the grinding wheel does not break.

Bond Type: brazing

Features of brazed cutting blade:

• High wear resistance

• Long processing life

• Sharp with high abbrasive efficiency

• Wide range of processing applications.
